Even the most expensive, highly-rated window sensor will fail if installed incorrectly. Proper installation ensures reliable state reporting, minimizes false alarms, and ensures the device will not fall off during temperature fluctuations. This guide focuses on standard magnetic contact sensors, as they account for the vast majority of DIY installations.
Understanding Gap Tolerance
The core concept of a magnetic contact sensor is the magnetic field keeping the internal reed switch closed. The maximum allowable distance between the main sensor body (which holds the battery and electronics) and the magnet is known as the gap tolerance.
For most consumer-grade surface-mount sensors, the maximum gap tolerance is between 12mm and 15mm (about half an inch). If you install the pieces further apart, the sensor will constantly read "Open." If you install them exactly at the maximum limit, minor thermal expansion of your window frames in the summer might push them out of range, causing frustrating middle-of-the-night false alarms.
Surface Mount vs. Recessed
There are two primary styles of contact sensors:
Surface Mount
These adhere to the visible surface of the window frame and sash. They are easy to install, easy to change batteries on, and require no permanent modification to the window.
Installation Tips: Always mount the main sensor body (the larger piece containing the delicate electronics and battery) on the fixed window frame. Mount the smaller, passive magnet on the moving sash. Moving the main body repeatedly subjects the internal battery contacts to kinetic shock, which can cause intermittent disconnects over time.
Recessed (Concealed)
Recessed sensors require drilling a hole into both the window frame and the sash to sink the sensor and magnet inside the wood or vinyl. When the window is closed, the sensor is completely invisible.
Installation Tips: Ensure you check your window manufacturer's warranty before drilling, as this may void weatherproofing guarantees. Recessed sensors are heavily reliant on precise alignment. Furthermore, if you have metal window frames (like aluminum), the metal can interfere with the magnetic field and the RF transmission, significantly reducing range.
Adhesive vs. Screw Mounting
Most surface-mount sensors come with pre-applied double-sided foam tape. While convenient, adhesive is vulnerable to moisture, UV breakdown, and temperature swings. If a sensor falls off a window while the alarm is armed, it will trigger an intrusion event.
| Mounting Method | Pros | Cons |
|---|---|---|
| Double-Sided Tape (VHB) | No drilling, fast install, easy removal | Degrades over time, risks dropping sensor |

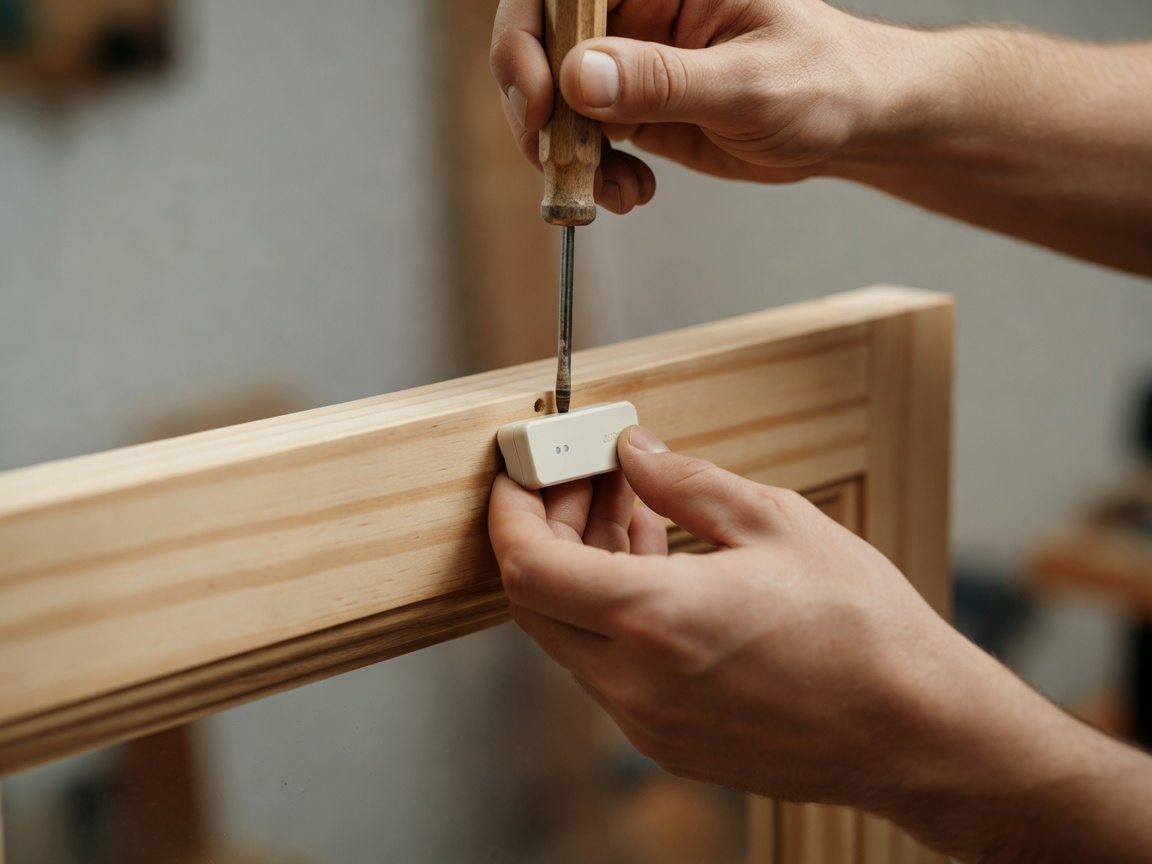

| Mechanical Fasteners (Screws) | Permanent, secure, immune to temperature | Leaves permanent holes, harder to reposition |
If you choose to use adhesive, proper surface preparation is non-negotiable. Clean both the window frame and the sash with high-concentration isopropyl alcohol and wait for it to flash dry entirely before applying the sensor. Apply firm pressure for at least 30 seconds to activate the pressure-sensitive adhesive properly.
Dealing with Molding and Trim
Modern decorative windows often have tiered molding, meaning the frame and the sash are not flush. If the height difference exceeds your sensor's gap tolerance, you must use spacers. Many manufacturers sell plastic spacer blocks, but you can also use small, cleanly cut pieces of wood or high-density foam to build up the lower surface until the magnet and sensor sit flush with one another.
